- Place of Origin:CN;GUA
- Brand Name:QIWEI
- Type:SAW BLADE
- Blade Material:Tungsten Carbide Steel
- Size:300X25.4X3.0x48T
- Model Number:28021
- Finishing:Polished

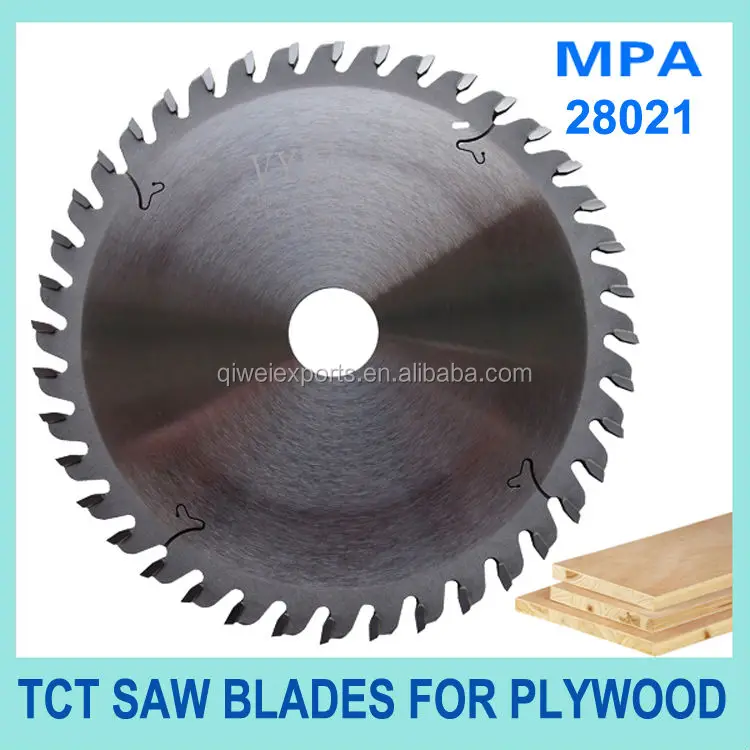

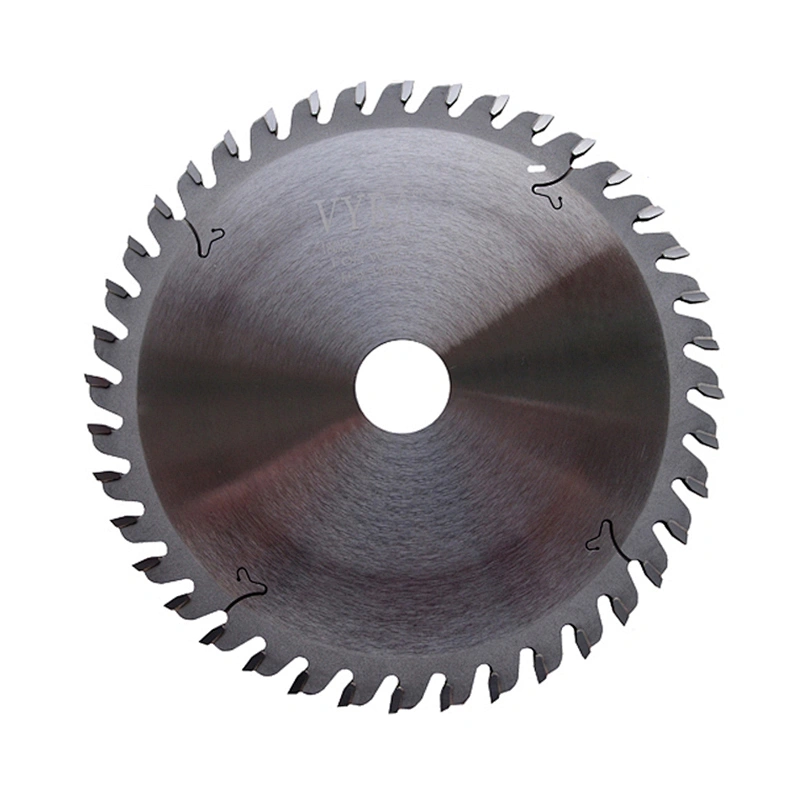

New Product TCT Circular Saw Blade for plywood
75Cr1/65Mn steel body with ATB Tooth
Various sizes
Best cutting
Lowest noise
MOQ:10 PCS.
Supply:30,000 pcs/month.
Delivery time: 15-20 days.
Features:
- Imported tip and blank steel,welded and ground by automatic CNC machine.With small vertical and flat jump.Vertical jump less than +/-0.02mm,flap jump less than +/-0.01mm.
- This blade is shaped in cone and equipped with the left/right bevel sawtooth,and the prescring width can be adjusted by raising or lowering its principal axis.
- It is exclusively applied to the cutting of various double-face veneered medium-density fibreboard.
- The cracking and rough edge of the veneered can be avoided.
- It is applicable to the computer controlled tandem slitter.
| Out diameter(ΦD) | Tooth width(B)mm | Tooth thickness(Φb) mm | Inner diameter(d) mm | Number of Teeth(Z) | Cutting Angle (a°) | Positioning hole(NI) | Use(U) |
| 125 | 4.3-5.3 | 3.0 | 20/45 | 24 | 5 | Use in the cutting of various double-face veneered medium-density fibreboard, avoid the cracking and rough edge of the veneering. | |
| 125 | 4.6-5.6 | 3.0 | 20/45 | 24 | 5 | ||
| 150 | 4.3-5.3 | 3.0 | 25.4/45 | 36 | 10 | ||
| 150 | 4.3-5.3 | 3.0 | 25.4/45 | 40 | 10 | ||
| 150 | 4.6-5.6 | 3.0 | 25.4/45 | 36 | 10 | ||
| 150 | 4.6-5.6 | 3.0 | 25.4/45 | 40 | 10 | ||
| 160 | 4.3-5.3 | 3.0 | 45 | 36 | 10 | 3/11/70 | |
| 160 | 4.3-5.3 | 3.0 | 55 | 36 | 10 | 3/7/66 | |
| 160 | 4.3-5.3 | 3.0 | 60 | 36 | 10 | 3/7/80 | |
| 160 | 4.3-5.3 | 3.0 | 45/60 | 40 | 10 | ||
| 160 | 4.6-5.6 | 3.0 | 45/55 | 36 | 10 | 3/9/72+3/7/66 | |
| 180 | 4.3-5.3 | 3.0 | 30/50 | 36 | 10 | (Φ50hole 3/15/80) | |
| 180 | 4.3-5.3 | 3.0 | 30/50 | 40 | 10 | (Φ50hole 3/15/80) | |
| 180 | 4.6-5.6 | 3.0 | 45/55 | 36 | 10 | ||
| 200 | 4.3-5.3 | 3.0 | 20/22 | 36 | 10 | ||
| 200 | 4.3-5.3 | 3.0 | 30/45 | 36 | 10 | ||
| 200 | 4.3-5.3 | 3.0 | 20/80 | 40 | 10 | ||
| 200 | 4.6-5.6 | 3.0 | 20/65 | 36 | 10 | (Φ65hole 2/9/110) | |
| 300 | 4.3-5.3 | 3.0 | 25.4/50 | 48 | 12 | (Φ50hole 3/15/80) | |
| 300 | 4.3-5.3 | 3.0 | 65/80 | 60 | 12 | (Φ65hole 2/9/110) | |
| 300 | 4.3-5.3 | 3.0 | 65/80 | 72 | 12 | (Φ65hole 2/9/110) |
Packing details:
1. The inner package: 1 PCS per plastic bag
2. The outside package: 1PCS per color box
3. The third package:15 pieces per carton
4. Carton size: 40X40X25 CM
5. Net weight: 1KG/pc
Shipping details:
| Shipping method | Quantity | Means of transpor | Shipping time |
| Express | Suit for small order and medium order | DHL FEDEX Postal service | 3-5days 4-6days 10days |
| Air Transportation | Suit for urgent and medium order | By plane | 3-5days |
| Sea Transportation | Suit for big order | By ship | Southeast Asia 15days South Asia 15days Middle East 15-20days Europ 25-30days |
We will be your long term and reliable China supplier from now on. Please contact with us and tell us the items you need,thanks.
